New Construction

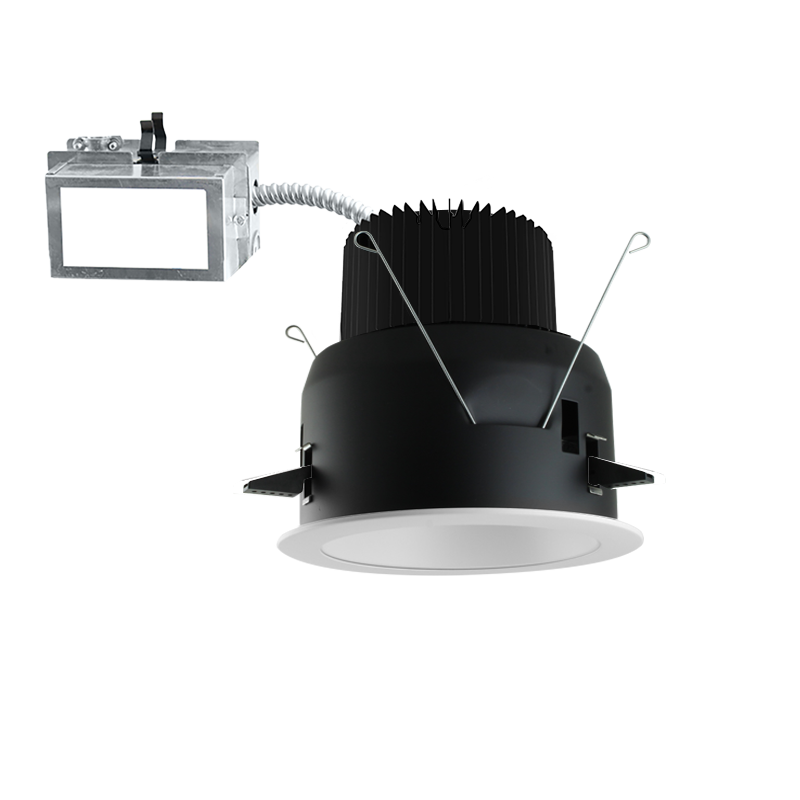

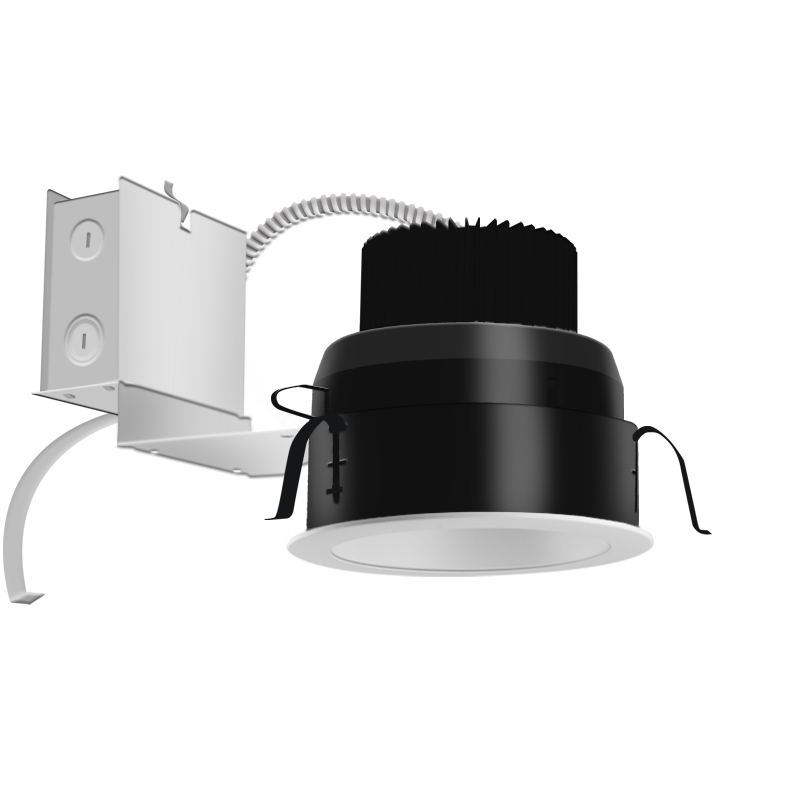

6" LED Commercial Downlight

USE OF PRODUCT
The 6” Versa Commercial LED Downlight is the ideal product for energy efficient lighting in Non-IC New Construction commercial applications. Available with interchangeable reflectors and trims, with an assortment of color temperatures, lenses, filters and dimmable driver options.

VERSA COMMERCIAL FEATURES

- Color Temperature: 2700K, 3000K, 3500K, or 4000K
- SDCM: 2 step binning
- Color Rendering Index: 93+ CRI
- R9: 60+
- Filter Accessories: Solite, frosted, or honey comb
- LED Life: 50,000 Hours
- LED Type: Cree LED

- Driver Info: 120-277V, 50/60 Hz, PF>0.
- Versatility: Interchangeable reflectors/trims, optics & filters

LED ENGINE
LED engine available with CREE LEDs in 2700K, 3000K, 3500K, or 4000K in standard 93+ CRI. 2 Step MacAdam ellipse allows for color consistency between fixtures. LED mounted to aluminum heat sink for maximum life output and thermal management.

OPTICAL LENS (Field Replaceable)
Field replaceable optical lens available in 15°, 25°, 35°, 50° and 70°. Easily achieve narrow spot to wide flood beam pattern.

FILTER ACCESSORIES
A multitude of filters are available to achieve a particular light effect. Available in frosted, honey comb, or solite lens options.

DIMMING

Available in 7 driver selections. (ID) Standard all-inclusive ELV, Triac, and 0-10V dimming driver called Intelligent Drive, 120-277V. (PEQ0) Lutron Hi-Lume Premier Ecosystem 0.1% w/soft on, fade to black dimming, 120-277V. (LDE1) Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming, 120-277V. (L3DA) Hi-lume 1% EcoSystem/3-Wire L3D Driver (EEI) eldoLED Eco 1% Dim (0-10V), 120-277V. (EDIO) eldoLED Solo 0.1% Dim(0-10V), 120-277V. (EDID) eldoLED Solo 0.1% Dim(DALI), 120-277V.

VERSATILITY
The Versa Commercial LED Downlight series provides for interchangeable reflectors and trims in round shape with an assortment of finishes to achieve a particular look. The ability to field install and/or replace various reflectors, trims, optics & filters makes the Versa Commercial ght Series the most flexible commercial downlight in the industry.

EMERGENCY BATTERY
Optional emergency battery available for a minimum of 90 minutes with both integral or remote test switch in 8W or 15W

INSTALLATION
Non-IC housing. Insulation must be kept at least 3" away from fixture.

LABELS/COMPLIANCE
- CSA Listed for US and Canada (Wet Location)
- 5 years limited warranty
