RFL6 (800 or 1,100 Lumens)

Download PDF File
Download PDF File
Download PDF File

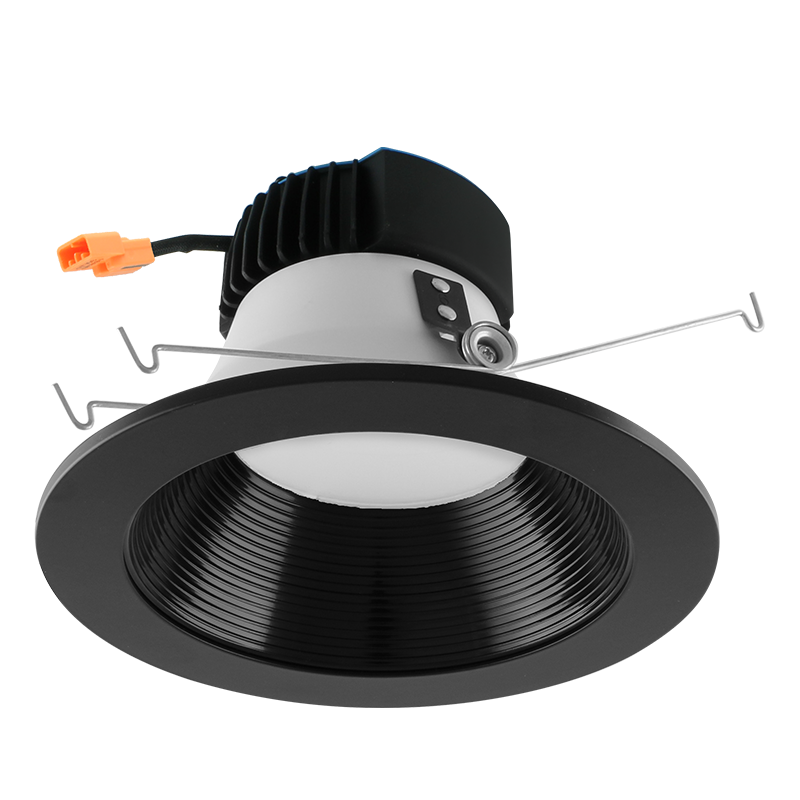

6" LED Recessed (More Colors Available)

6" LED Recessed

USE OF PRODUCT
The VersaTrim is the ideal product for energy efficient lighting in existing, remodel, or new construction applications.  This product may be used in hospitality, health care, commercial, retail, and residential applications. The VersaTrim will reduce energy consumption, emits little heat, and reduces cooling loads for added costs savings.

VERSATRIM FEATURES
• Available Wattage/Lumen Package- 10.5 Watt/800 Lumens or 12.5 Watt/1100 Lumens
• Color Temperature - 2,700K; 3,000K; 3,500K; or 4,000K
• Color Rendering Index - 93 CRI
• SDCM - 2 Step Binning
• Voltage - (8L-120V standard), (11L-120V-277V standard); 120-277V (with optional 0-10V dimming driver)
• LED Operating Life - 50,000 hours at 70% lumen maintenance
• Light Source - Cree LED
• Dimming - Dimmable to 5% with select dimmers
• Driver - Externally mounted driver for easy replacement
• Warranty - 5 Year Limited Warranty
• Qualifications - CSA Classified, CSA Listed for Wet Location, California Title 24 Compliant, JA8 certified

LED MODULE MECHANICS
• Interchangeable baffle, reflector, and trim ring in round or square are designed for convenient finish selection or replacement.
• Carefully designed heat sink keeps junction temperatures below unsuitable levels by keeping heat away from LEDs.
• Diffused, polycarbonate, impact-resistant lens provides for even light output, glare control, and conceals LEDs from view
